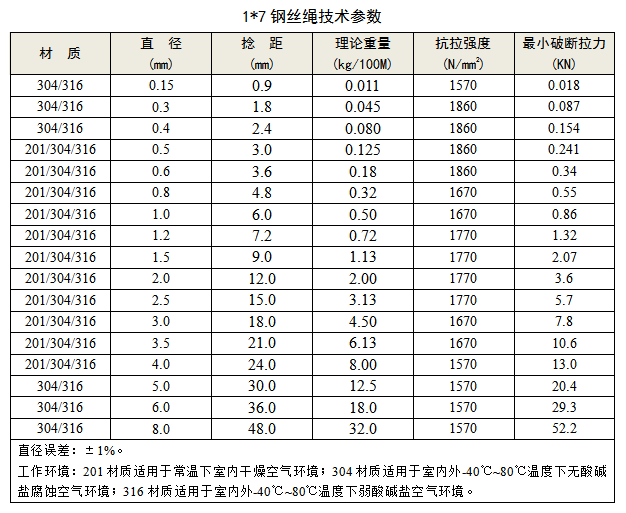

1*7不銹鋼絲繩技術參數 GBT9944-2002
|
材質 |
直徑 (mm) |
捻距 (mm) |
理論重量 (kg/100M) |
抗拉強度 (N/mm2) |
最小破斷拉力 (KN) |
|
|
304/316 |
0.15 |
0.9 |
0.011 |
1570 |
0.018 |
|
|
304/316 |
0.3 |
1.8 |
0.045 |
1860 |
0.087 |
|
|
304/316 |
0.4 |
2.4 |
0.080 |
1860 |
0.154 |
|
|
201/304/316 |
0.5 |
3.0 |
0.125 |
1860 |
0.241 |
|
|
201/304/316 |
0.6 |
3.6 |
0.18 |
1860 |
0.34 |
|
|
201/304/316 |
0.8 |
4.8 |
0.32 |
1670 |
0.55 |
|
|
201/304/316 |
1.0 |
6.0 |
0.50 |
1670 |
0.86 |
|
|
201/304/316 |
1.2 |
7.2 |
0.72 |
1770 |
1.32 |
|
|
201/304/316 |
1.5 |
9.0 |
1.13 |
1770 |
2.07 |
|
|
201/304/316 |
2.0 |
12.0 |
2.00 |
1770 |
3.6 |
|
|
201/304/316 |
2.5 |
15.0 |
3.13 |
1770 |
5.7 |
|
|
201/304/316 |
3.0 |
18.0 |
4.50 |
1670 |
7.8 |
|
|
201/304/316 |
3.5 |
21.0 |
6.13 |
1670 |
10.6 |
|
|
201/304/316 |
4.0 |
24.0 |
8.00 |
1570 |
13.0 |
|
|
304/316 |
5.0 |
30.0 |
12.5 |
1570 |
20.4 |
|
|
304/316 |
6.0 |
36.0 |
18.0 |
1570 |
29.3 |
|
|
304/316 |
8.0 |
48.0 |
32.0 |
1570 |
52.2 |
|
|
直徑誤差：±1%。 工作環境：201材質適用于常溫下室內干燥空氣環境；304材質適用于室內外-40℃~80℃溫度下無酸堿鹽腐蝕空氣環境；316材質適用于室內外-40℃~80℃溫度下弱酸堿鹽空氣環境。 |
||||||
