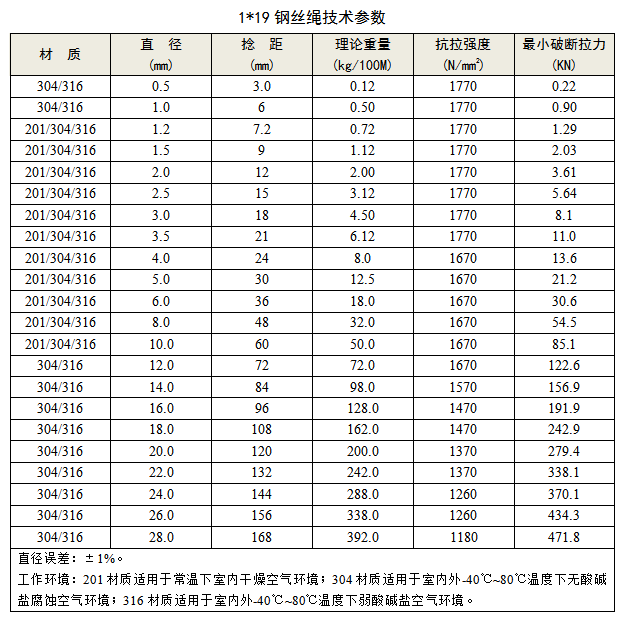

1*19不銹鋼絲繩技術參數 GBT9944-2002
|
材 質 |
直 徑 (mm) |
捻 距 (mm) |
理論重量 (kg/100M) |
抗拉強度 (N/mm2) |
最小破斷拉力 (KN) |
|
|
304/316 |
0.5 |
3.0 |
0.12 |
1770 |
0.22 |
|
|
304/316 |
1.0 |
6 |
0.50 |
1770 |
0.90 |
|
|
201/304/316 |
1.2 |
7.2 |
0.72 |
1770 |
1.29 |
|
|
201/304/316 |
1.5 |
9 |
1.12 |
1770 |
2.03 |
|
|
201/304/316 |
2.0 |
12 |
2.00 |
1770 |
3.61 |
|
|
201/304/316 |
2.5 |
15 |
3.12 |
1770 |
5.64 |
|
|
201/304/316 |
3.0 |
18 |
4.50 |
1770 |
8.1 |
|
|
201/304/316 |
3.5 |
21 |
6.12 |
1770 |
11.0 |
|
|
201/304/316 |
4.0 |
24 |
8.0 |
1670 |
13.6 |
|
|
201/304/316 |
5.0 |
30 |
12.5 |
1670 |
21.2 |
|
|
201/304/316 |
6.0 |
36 |
18.0 |
1670 |
30.6 |
|
|
201/304/316 |
8.0 |
48 |
32.0 |
1670 |
54.5 |
|
|
201/304/316 |
10.0 |
60 |
50.0 |
1670 |
85.1 |
|
|
304/316 |
12.0 |
72 |
72.0 |
1670 |
122.6 |
|
|
304/316 |
14.0 |
84 |
98.0 |
1570 |
156.9 |
|
|
304/316 |
16.0 |
96 |
128.0 |
1470 |
191.9 |
|
|
304/316 |
18.0 |
108 |
162.0 |
1470 |
242.9 |
|
|
304/316 |
20.0 |
120 |
200.0 |
1370 |
279.4 |
|
|
304/316 |
22.0 |
132 |
242.0 |
1370 |
338.1 |
|
|
304/316 |
24.0 |
144 |
288.0 |
1260 |
370.1 |
|
|
304/316 |
26.0 |
156 |
338.0 |
1260 |
434.3 |
|
|
304/316 |
28.0 |
168 |
392.0 |
1180 |
471.8 |
|
|
直徑誤差：±1%。 工作環境：201材質適用于常溫下室內干燥空氣環境；304材質適用于室內外-40℃~80℃溫度下無酸堿鹽腐蝕空氣環境；316材質適用于室內外-40℃~80℃溫度下弱酸堿鹽空氣環境。 |
||||||
