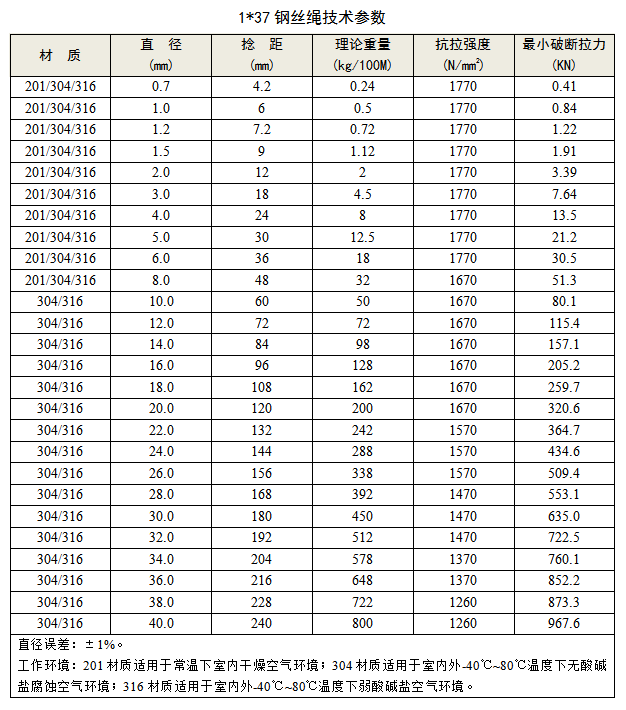

1*37不銹鋼絲繩技術參數 GBT9944-2002
|
材 質 |
直 徑 (mm) |
捻 距 (mm) |
理論重量 (kg/100M) |
抗拉強度 (N/mm2) |
最小破斷拉力 (KN) |
|
|
201/304/316 |
0.7 |
4.2 |
0.24 |
1770 |
0.41 |
|
|
201/304/316 |
1.0 |
6 |
0.5 |
1770 |
0.84 |
|
|
201/304/316 |
1.2 |
7.2 |
0.72 |
1770 |
1.22 |
|
|
201/304/316 |
1.5 |
9 |
1.12 |
1770 |
1.91 |
|
|
201/304/316 |
2.0 |
12 |
2 |
1770 |
3.39 |
|
|
201/304/316 |
3.0 |
18 |
4.5 |
1770 |
7.64 |
|
|
201/304/316 |
4.0 |
24 |
8 |
1770 |
13.5 |
|
|
201/304/316 |
5.0 |
30 |
12.5 |
1770 |
21.2 |
|
|
201/304/316 |
6.0 |
36 |
18 |
1770 |
30.5 |
|
|
201/304/316 |
8.0 |
48 |
32 |
1670 |
51.3 |
|
|
304/316 |
10.0 |
60 |
50 |
1670 |
80.1 |
|
|
304/316 |
12.0 |
72 |
72 |
1670 |
115.4 |
|
|
304/316 |
14.0 |
84 |
98 |
1670 |
157.1 |
|
|
304/316 |
16.0 |
96 |
128 |
1670 |
205.2 |
|
|
304/316 |
18.0 |
108 |
162 |
1670 |
259.7 |
|
|
304/316 |
20.0 |
120 |
200 |
1670 |
320.6 |
|
|
304/316 |
22.0 |
132 |
242 |
1570 |
364.7 |
|
|
304/316 |
24.0 |
144 |
288 |
1570 |
434.6 |
|
|
304/316 |
26.0 |
156 |
338 |
1570 |
509.4 |
|
|
304/316 |
28.0 |
168 |
392 |
1470 |
553.1 |
|
|
304/316 |
30.0 |
180 |
450 |
1470 |
635.0 |
|
|
304/316 |
32.0 |
192 |
512 |
1470 |
722.5 |
|
|
304/316 |
34.0 |
204 |
578 |
1370 |
760.1 |
|
|
304/316 |
36.0 |
216 |
648 |
1370 |
852.2 |
|
|
304/316 |
38.0 |
228 |
722 |
1260 |
873.3 |
|
|
304/316 |
40.0 |
240 |
800 |
1260 |
967.6 |
|
|
直徑誤差：±1%。 工作環境：201材質適用于常溫下室內干燥空氣環境；304材質適用于室內外-40℃~80℃溫度下無酸堿鹽腐蝕空氣環境；316材質適用于室內外-40℃~80℃溫度下弱酸堿鹽空氣環境。 |
||||||
