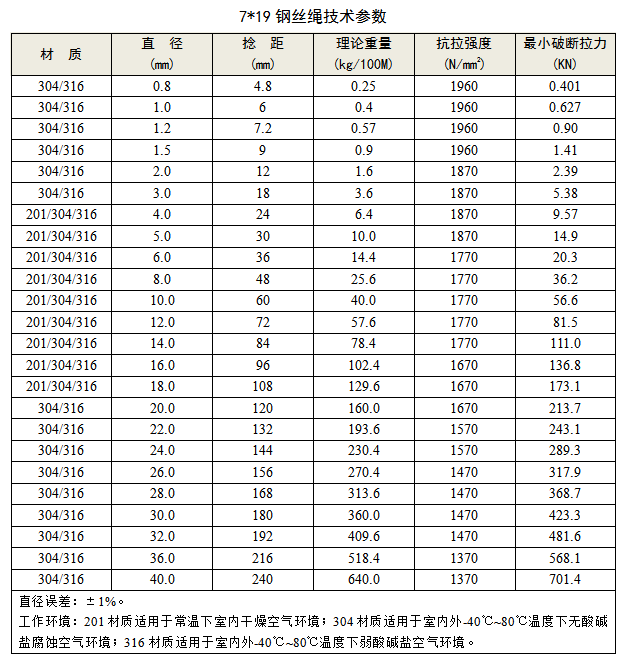

7*19不銹鋼絲繩技術參數 GBT9944-2002
|
材 質 |
直 徑 (mm) |
捻 距 (mm) |
理論重量 (kg/100M) |
抗拉強度 (N/mm2) |
最小破斷拉力 (KN) |
|
|
304/316 |
0.8 |
4.8 |
0.25 |
1960 |
0.401 |
|
|
304/316 |
1.0 |
6 |
0.4 |
1960 |
0.627 |
|
|
304/316 |
1.2 |
7.2 |
0.57 |
1960 |
0.90 |
|
|
304/316 |
1.5 |
9 |
0.9 |
1960 |
1.41 |
|
|
304/316 |
2.0 |
12 |
1.6 |
1870 |
2.39 |
|
|
304/316 |
3.0 |
18 |
3.6 |
1870 |
5.38 |
|
|
201/304/316 |
4.0 |
24 |
6.4 |
1870 |
9.57 |
|
|
201/304/316 |
5.0 |
30 |
10.0 |
1870 |
14.9 |
|
|
201/304/316 |
6.0 |
36 |
14.4 |
1770 |
20.3 |
|
|
201/304/316 |
8.0 |
48 |
25.6 |
1770 |
36.2 |
|
|
201/304/316 |
10.0 |
60 |
40.0 |
1770 |
56.6 |
|
|
201/304/316 |
12.0 |
72 |
57.6 |
1770 |
81.5 |
|
|
201/304/316 |
14.0 |
84 |
78.4 |
1770 |
111.0 |
|
|
201/304/316 |
16.0 |
96 |
102.4 |
1670 |
136.8 |
|
|
201/304/316 |
18.0 |
108 |
129.6 |
1670 |
173.1 |
|
|
304/316 |
20.0 |
120 |
160.0 |
1670 |
213.7 |
|
|
304/316 |
22.0 |
132 |
193.6 |
1570 |
243.1 |
|
|
304/316 |
24.0 |
144 |
230.4 |
1570 |
289.3 |
|
|
304/316 |
26.0 |
156 |
270.4 |
1470 |
317.9 |
|
|
304/316 |
28.0 |
168 |
313.6 |
1470 |
368.7 |
|
|
304/316 |
30.0 |
180 |
360.0 |
1470 |
423.3 |
|
|
304/316 |
32.0 |
192 |
409.6 |
1470 |
481.6 |
|
|
304/316 |
36.0 |
216 |
518.4 |
1370 |
568.1 |
|
|
304/316 |
40.0 |
240 |
640.0 |
1370 |
701.4 |
|
|
直徑誤差：±1%。 工作環境：201材質適用于常溫下室內干燥空氣環境；304材質適用于室內外-40℃~80℃溫度下無酸堿鹽腐蝕空氣環境；316材質適用于室內外-40℃~80℃溫度下弱酸堿鹽空氣環境。 |
||||||
